ROISkyScene API Documentation

Bases: pandoraaperture.scene.SkyScene

Special version of a SkyScene that works with a ROI sparse matrix

Parameters:

Name	Type	Description	Default
prf	PRF	pandoraaperture PRF class.	required
wcs	WCS	astropy World Coordinate System	required
time	Time	astropy Time	<Time object: scale='utc' format='datetime' value=2026-01-07 20:53:23.118502>
user_cat	DataFrame	Optional catalog from the user. Use this to pass a catalog of objects expected in this data that are not part of the Gaia catalog. You must include all the columns specified in your config file under catalog_columns.	None
nROIs	int	The number of regions of interest in the larger image	1
ROI_size	Tuple	The size the regions of interest in (row, column) pixels. All ROIs must be the same size.	(50, 50)
ROI_corners	List[Tuple[int, int]]	The origin (lower left) corner positon for each of the ROIs. Must have length nROIs. List of tuples.	(999, 999)

NIRDAflux property

Gives the flux on the NIRDA. This can be updated with a reference product in the future...!

ROI_corners = (999, 999) class

Built-in immutable sequence.

If no argument is given, the constructor returns an empty tuple. If iterable is specified the tuple is initialized from iterable's items.

If the argument is a tuple, the return value is the same object.

ROI_size = (50, 50) class

Built-in immutable sequence.

If no argument is given, the constructor returns an empty tuple. If iterable is specified the tuple is initialized from iterable's items.

If the argument is a tuple, the return value is the same object.

VDAflux property

Gives the flux on the VDA. This can be updated with a reference product in the future...!

flux property

Here we set the flux that is assumed to be the default for this object. For regular sky scenes it's VDA.

header_cards property

Header cards that are necessary to show state of package.

nROIs = 1 class

int([x]) -> integer int(x, base=10) -> integer

Convert a number or string to an integer, or return 0 if no arguments are given. If x is a number, return x.int(). For floating point numbers, this truncates towards zero.

If x is not a number or if base is given, then x must be a string, bytes, or bytearray instance representing an integer literal in the given base. The literal can be preceded by '+' or '-' and be surrounded by whitespace. The base defaults to 10. Valid bases are 0 and 2-36. Base 0 means to interpret the base from the string as an integer literal.

int('0b100', base=0) 4

wcs_cards property

Returns the WCS header as cards.

A(delta_pos=None)

Returns the design matrix of the SkyScene.

Parameters:

Name	Type	Description	Default
A		Matrix containing the PRFs of all targets in the scene.	required
delta_pos		Change in position in pixels. Use format (row, column).	None

evaluate(delta_pos=None)

Returns a dense image of the SkyScene

    Returns

    r: npt.NDArray
        Array of row positions of the image
    c: npt.NDArray
        Array of column positions of the image
    im: npt.NDArray
        Image of the scene

Parameters:

Name	Type	Description	Default
delta_pos		Change in position in pixels. Use format (row, column).	None

from_pointing(ra, dec, theta, nROIs, ROI_corners, ROI_size, time=<Time object: scale='utc' format='datetime' value=2026-01-07 20:53:23.119926>) classmethod

Parameters:

Name	Type	Description	Default
ra		Right Ascention	required
dec		Declination	required
theta		Roll angle in degrees	required
time		astropy Time	<Time object: scale='utc' format='datetime' value=2026-01-07 20:53:23.119926>
nROIs		The number of regions of interest in the larger image	required
ROI_corners		The origin (lower left) corner positon for each of the ROIs. Must have length nROIs. List of tuples.	required
ROI_size		The size the regions of interest in (row, column) pixels. All ROIs must be the same size.	required

get_all_apertures(delta_pos=None, relative_threshold=0.005, absolute_threshold=50)

Obtain the aperture and aperture statistics for all targets.

Parameters:

Name	Type	Description	Default
delta_pos		Change in position in pixels. Use format (row, column).	None
relative_threshold		Threshold to cut aperture off at in units of total source flux.	0.005
absolute_threshold		Threshold to cut aperture off at, in units of electrons/s.	50

Returns:

Name	Type	Description
aperture	ndarray	Array of bools that shows which pixels are considered to be part of the target.
contamination	float	Value showing how much of the flux in the aperture is due to other sources/the amount of flux inside the aperture.
completeness	float	Value showing how much of the target flux is inside the aperture/total expected flux.
total_in_aperture	float	Value showing how much flux is inside the aperture.

get_aperture(target, delta_pos=None, relative_threshold=0.005, absolute_threshold=50)

Obtain the aperture and aperture statistics for a particular target.

Parameters:

Name	Type	Description	Default
target		Indicates a target in the catalog. Use either in integer to express an index in the catalog, or a SkyCoord to find the closest target	required
delta_pos		Change in position in pixels. Use format (row, column).	None
relative_threshold		Threshold to cut aperture off at in units of total source flux.	0.005
absolute_threshold		Threshold to cut aperture off at, in units of electrons/s.	50

Returns:

Name	Type	Description
aperture	ndarray	Array of bools that shows which pixels are considered to be part of the target.
contamination	float	Value showing how much of the flux in the aperture is due to other sources/the amount of flux inside the aperture.
completeness	float	Value showing how much of the target flux is inside the aperture/total expected flux.
total_in_aperture	float	Value showing how much flux is inside the aperture.

get_aperture_hdu(target, delta_pos=None, relative_threshold=0.005, absolute_threshold=50)

Obtain the aperture HDU.

Returns:

Name	Type	Description
hdu	hdu	FITS HDU containing the aperture, with aperture metrics in header.

Parameters:

Name	Type	Description	Default
target		Indicates a target in the catalog. Use either in integer to express an index in the catalog, or a SkyCoord to find the closest target	required
delta_pos		Change in position in pixels. Use format (row, column).	None
relative_threshold		Threshold to cut aperture off at in units of total source flux.	0.005
absolute_threshold		Threshold to cut aperture off at, in units of electrons/s.	50

get_catalog_hdu(delta_pos=None)

Obtain the catalog HDU.

Returns:

Name	Type	Description
hdu	hdu	FITS HDU containing the catalog of all sources that will land on pixels.

Parameters:

Name	Type	Description	Default
delta_pos		Change in position in pixels. Use format (row, column).	None

get_model_hdu(delta_pos=None)

Obtain the model HDU.

Returns:

Name	Type	Description
hdu	hdu	FITS HDU containing the model of all sources, including their brightness.

Parameters:

Name	Type	Description	Default
delta_pos		Change in position in pixels. Use format (row, column).	None

get_prf_hdu(delta_pos=None)

Obtain the PRF HDU.

Returns:

Name	Type	Description
hdu	hdu	FITS HDU containing the of all sources that will land on pixels.

Parameters:

Name	Type	Description	Default
delta_pos		Change in position in pixels. Use format (row, column).	None

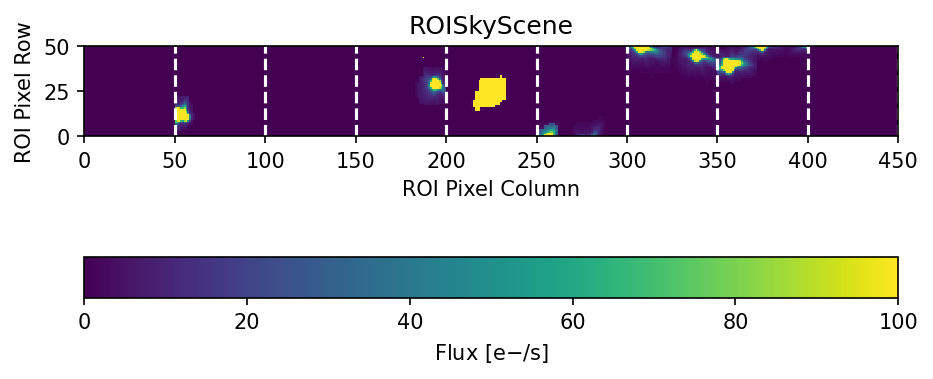

plot(**kwargs)

Plots the SkyScene. Use this functon to visually inspect the SkyScene.
