`SpatialPRF` API Documentation

Spatial PRF

Bases: pandoraaperture.prf.PRF

Special case where the PRF is a function of focal plane position.

Special PRF class for making Pixel Response Functions that change as a function of focal plane position.

Parameters:

Name	Description	Default
`focal_row`	Row position on the focal plane that corresponds to each element in the flux array. Units of pixels.	required
`focal_column`	Column position on the focal plane that corresponds to each element in the flux array. Units of pixels.	required
`flux`	Array of the flux of the PRF as a function of position. Usually normalized such that the total flux is 1.	required
`pixel_size`	True detector pixel size in dimensions of length/pixel	required
`sub_pixel_size`	PSF file pixel size in dimensions of length/pixel	required
`scale`	How much to scale the PRF by. Scale of 2 makes the PSF 2x broader. Default is 1.	`1`
`imshape`	Tuple of the shape of the true image. If using ROIs, use the shape of the image that each ROI is cut out from. Use format (row, column).	`(2048, 2048)`
`imcorner`	Tuple of the lower left corner of the image, i.e. it's origin. Use this to move the image around on the grid. If using a window mode, make sure to set this to the right corner. Use format (row, column).	`(0, 0)`

`evaluate(location=None, normalize=True, gradients=False)`

Evaluate the PRF model for a target at a given location on the detector.

Parameters:

Name	Description	Default
`location`	Location of the source on the detector. Use format (row, column). If not set will default to `self._default_location` which is in the middle of the image as set by `imshape` and `imcorner`.	`None`
`normalize`	Whether to normalize the input data so that the total flux is 1.	`True`
`gradients`	Whether to return gradients. If True, will return an additional 2 arrays that contain the gradients in each axis.	`False`

Returns:

Name	Type	Description
`row_im`	`ndarray`	1D Array of integer row values at which the PRF is evaluated.
`column_im`	`ndarray`	1D Array of integer column values at which the PRF is evaluated.
`prf_im`	`ndarray`	2D Array of PRF values.
`dprf_im`	`ndarray`	2, 2D arrays of the gradient of the PRF values. Only returned if `gradients`=True.

Load a PRF object from a file.

Parameters:

Name	Type	Description	Default
`file`		Input file to use. Choose either a string path to the file or an `astropy.fits.HDUList` object	required

Load a PRF from pandoraref.

Parameters:

Name	Type	Description	Default
`name`	`str`	Name of detector, choose from VISDA or NIRDA.	`'visda'`

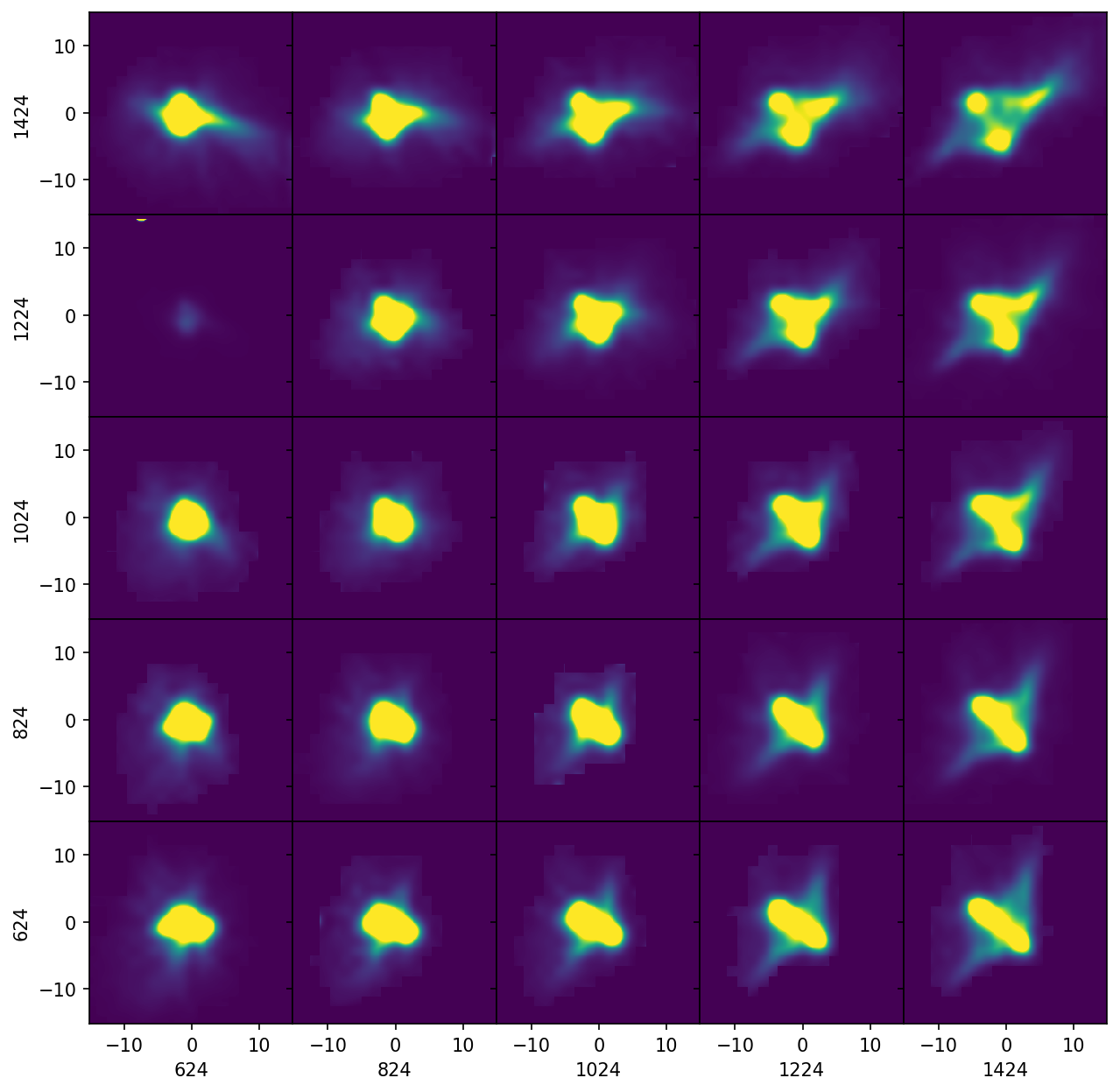

Plots the PRF. Use this functon to visually inspect the PRF.

Converts a spatial PRF into a PRF evaluated at a single location, making it faster to compute multiple PRFs, if necessary.

Parameters:

Name	Type	Description	Default
`location`		Location of the source on the detector. Use format (row, column). If not set will default to `self._default_location` which is in the middle of the image as set by `imshape` and `imcorner`.	`None`

Converts this PRF object to a Sparse3D object.

Parameters:

Name	Description	Default
`location`	Location of the source on the detector. Use format (row, column). If not set will default to `self._default_location` which is in the middle of the image as set by `imshape` and `imcorner`.	`None`
`normalize`	Whether to normalize the input data so that the total flux is 1.	`True`
`gradients`	Whether to return gradients. If True, will return an additional 2 arrays that contain the gradients in each axis.	`False`

Returns:

Name	Type	Description
`X`	`Sparse3D`	Sparse3D object containing the PRF at a given location.
`dX0`	`Sparse3D`	Sparse3D object containing the gradient of the PRF in axis 0 at a given location. Only returned if `gradients`=True.
`dX1`	`Sparse3D`	Sparse3D object containing the gradient of the PRF in axis 1 at a given location. Only returned if `gradients`=True.
